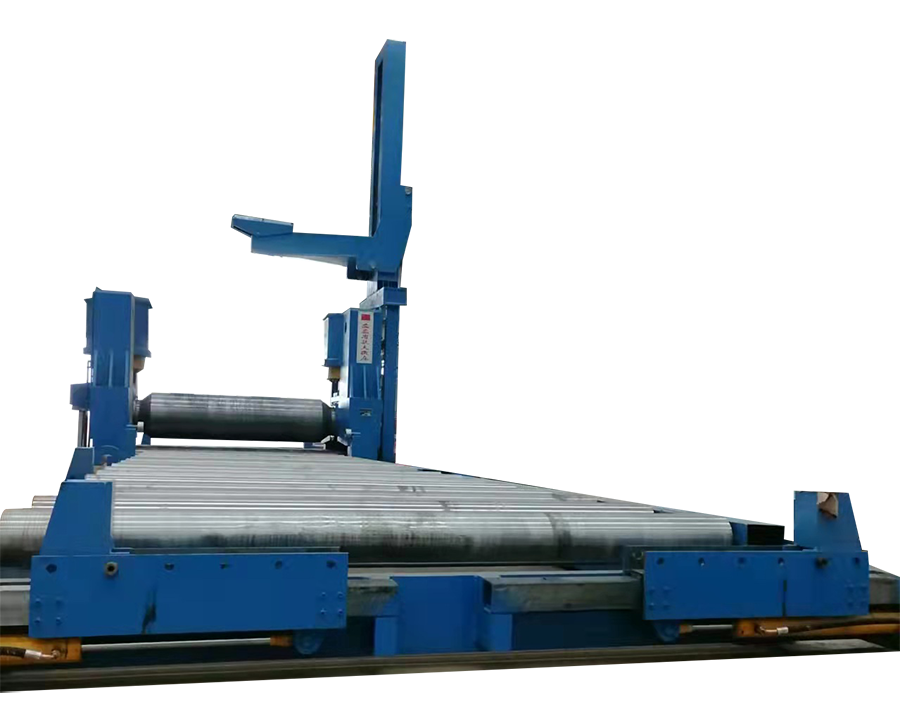

Upper roller universal three roller plate rolling machine

Only to achieve unlimited innovation

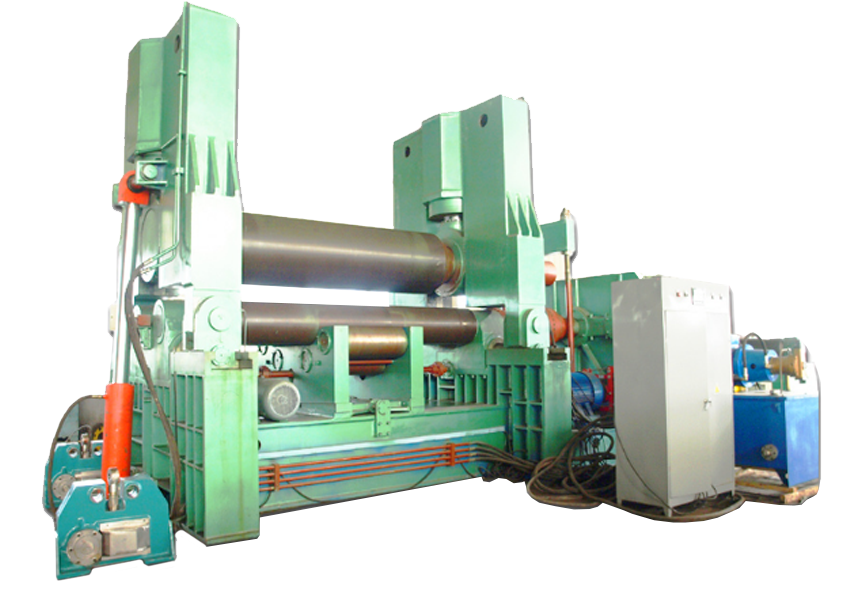

Aerospace design, manufacture and sales of W11SNC upper roll universal three-roll plate winding machine can provide 10MM≤100MM plate bending. PLC control also has the function of pre-bending and winding, its main structure is composed of the main transmission device, the lower roll and the upper roll moving device, the upper roll device, the tipping device, the roller supporting device and other components, the whole machine structure is compact, reliable and convenient. The up and down movement and horizontal movement of the upper roller are equipped with digital display device, easy to operate and accurate control.

Digital monitoring, accurate prebending

The silent light melts and moves freely
Innovative double main motor drive
Intelligent lift automatic leveling

W11SNCW11SNC upper roll lifting, upside down by the hydraulic cylinder to perform, all operation using PLC electrical control, convenient operation, digital display monitor each step of the action: upper roll lifting displacement, horizontal displacement and winding parameters. When the end is prebending, the length of the straight edge can be set freely by changing the horizontal movement of the upper roll. The upper roll is directly pressurized, the shape of the straight edge is controlled, and the end prebending is implemented with high precision.。

Roller mounting device

The two main oil cylinders are installed in the overturned side frame, the upper part of the fixed side frame, and the cylinder piston rod intersects the bearing seat at both ends of the upper roll

The upper roll rises and falls with the cylinder, and can also be single rise and single fall. The structure of the upper cylinder is the result of many years of design and design

Change the price, absorb the advantages of Japan, Germany, space and other models and combined with the process requirements to determine the roller

Large effect area. The cylinder is placed inside the bed for easy maintenance。

Rotational bending
Perfect radian

Horizontal regulation
Integrated forming

High efficiency power
Energy saving and environmental protection

Horizontal moving device

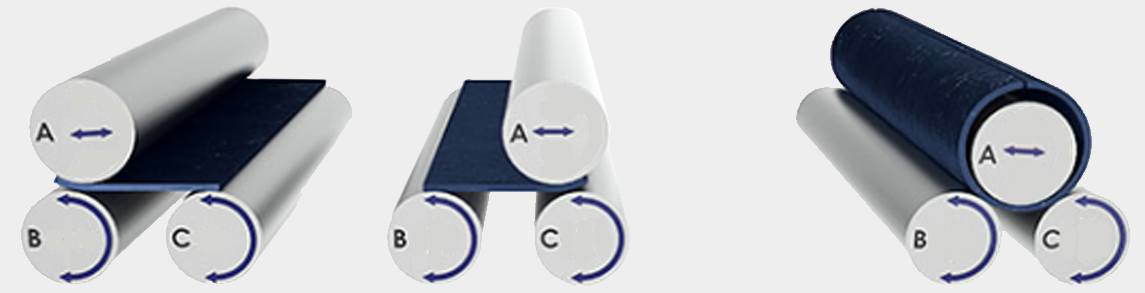

The horizontal mobility device designed by Aerospace for the W11SNC is a mechanical transmission, the idea being to achieve pre-bending and winding

The working characteristics are large static load, small dynamic load, and accurate rigid positioning。W11SNC water

The flat moving device is powered by a mobile motor and driven by a reducer, worm gear and screw nut mechanism

The horizontal movement of the upper roller device can realize the asymmetric winding of the plate。

In the plate prebending process, the horizontal component is large, requiring the support rigidity, and the horizontal component is in the symmetric winding

The internal consumption of the bearing seat, the force transmitted to the screw is very small, in the horizontal movement of the work is not added to the upper roll

When pressed, it only bears the sliding friction force brought about by the dead weight of the upper roll, frame, etc。

Upper and lower cylinder
Easy installation

Lower oil cylinder
Rodless pressure

Inside the oil cylinder
Isolation oxidation

Reasons to choose space！

Space has been achievedISO9001：2000International quality system certification，In order to achieve the goal of customer satisfaction, ensure that customer needs and expectations are identified，And translated into the company's products each service requirements，"Careful manufacturing, continuous improvement, advanced technology, excellent performance, safe and reliable products and quality service to customer satisfaction" as the quality policy. It realizes the control of the whole process from design control, manufacturing process control, inspection control to the whole machine factory, installation and service. The operation of the quality system strictly implements the "quality manual, "" procedure documents, "" operation instructions," and various related technical standards, management standards, enterprise self-defined standards and various management systems. Product quality truly realized the whole staff, the whole process control。
