QC12K

Eyes causing more sharpness。

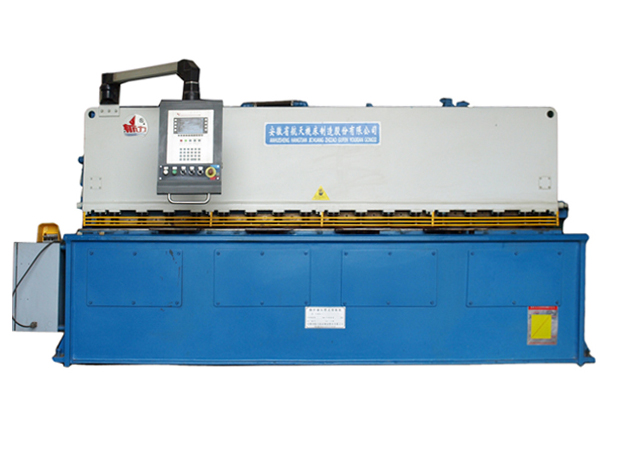

QC11YHydraulic gate type shearing machine is an industrial instrument used to cut straight edge blank of sheet metal。

The working principle and structure of a plate shearing machine: The plate shearing machine is often used to cut blank materials with straight edges。

The cutting process should ensure the straightness and parallelism requirements of the cut surface of the sheet metal, and minimize the distortion of the sheet metal as much as possible to obtain high-quality workpieces。

All of this is happening 5.7”Splendor on graphic display。

Therefore, you can have a more captivating experience and immerse yourself in a dazzling new way。

Performance

Desire for speed? I was already prepared。

1、Adopting advanced integrated hydraulic system, with good reliability。

2、Adopting three-point support rolling guide rail to eliminate support clearance and improve shear quality。

3.Mobile rear blocking, manual fine adjustment, digital display; The blade gap is adjusted by manual wheels, which is fast, accurate, and convenient。

4.Rectangular blade, all four blades can be used, with a long service life; Adjustable shear angle to reduce sheet metal distortion and deformation。

5.The upper tool holder adopts an inward tilt structure, which is easy to unload and can improve the accuracy of the work。

6.Has the function of segmented cutting; Equipped with light alignment function; Rear support device (optional configuration)。

Design

In a small figure, there is a great deal to be done。

Nowadays, the weight of this machineIncrease instead of decrease，Use more in key areasHigh torque stiffness plate，Different from previous welding methods, with tight seams，

Only for enhancing shear accuracy and machine tool service life。

Accuracy

Restore your true colors, what you think is what you see。

智能型油压单元
高强度拉簧
整体刀片

The hydraulic system adopts an intelligent hydraulic unit imported from Taiwan, and the return stroke of the tool holder adopts high-strength tension springs, which have fast cutting speed and high efficiency, improving the quality of cutting。

The blade adopts an integral blade, and the gap between the blade edges is directly connected to the system through gear combinations and reducers, controlled by a CNC system，

Ensuring the accuracy and speed of blade gap adjustment, the blade gap can be automatically adjusted when processing different sheet materials。

System

Valuable for the brain, operating everything

Italy ESA S525 Gate and swing shear machine

The rear stopper adopts ball screw, servo motor, synchronous belt, and synchronous wheel. The CNC system can quickly and conveniently control the distance of the rear stopper and ensure the accuracy of the rear stopper positioning。

Technical Parameter
